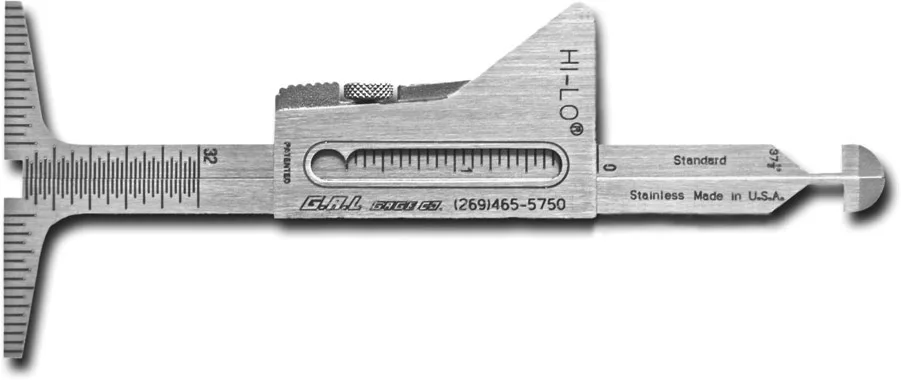

Hi-Lo Welding Gauge
$138.50
- Measures internal alignment of pipe after fit-up/alignment, cuts radiographic rejects
- Measures internal misalignment of pipe before and after tracking
- Measurement Scale: Inches on one side and Metric on the opposite side
- Stainless Steel
- Satisfies Fit-Up codes, ASME, ANSI, API & Military
In stock (can be backordered)
Description
G.A.L.’s Hi-Lo Welding Gauge – the ultimate tool for precise internal alignment. Featuring a sleek, 30% lighter design, this gauge ensures accurate measurements for pipe fit-up/alignment. Crafted from durable stainless steel, it meets ASME, ANSI, API & Military standards. With dual-sided scales in Inches and Metric, achieve flawless welds every time.
Measures:
- Internal alignment of pipe after fit-up/alignment
- Internal misalignment of pipe before and after tracking
Measures in both Inch and Metric
Additional information
| Weight | 0.5 lbs |
|---|---|
| Brand |
G.A.L. Gage Co. |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
