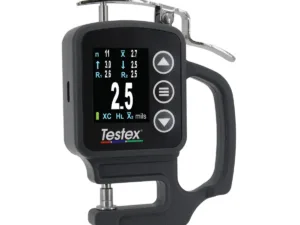

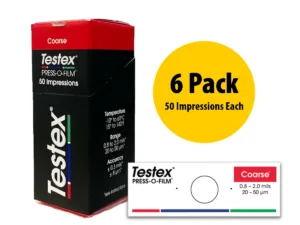

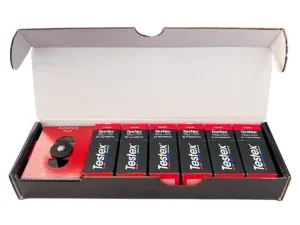

Testex replica tape is used in conjunction with an analog or digital spring-loaded micrometer for acquiring surface profile measurements according to Method C in ASTM D4417. The replica tape is rubbed onto the abrasive blast cleaned surface forming a reverse replica of the peak-valley pattern in the steel. The replica is quantified using a spring loaded micrometer to determine the maximum peak-to-valley depth. Each roll of tape contains 50 pieces.

Grade (descriptive) Range When Used With Gauge (mils) / (um)

Coarse 0.8 to 2.5 / 20 to 64

X-Coarse 1.5 to 4.5 / 38 to 115

X-Coarse Plus 4.6 to 5.0 / 116 to 127
