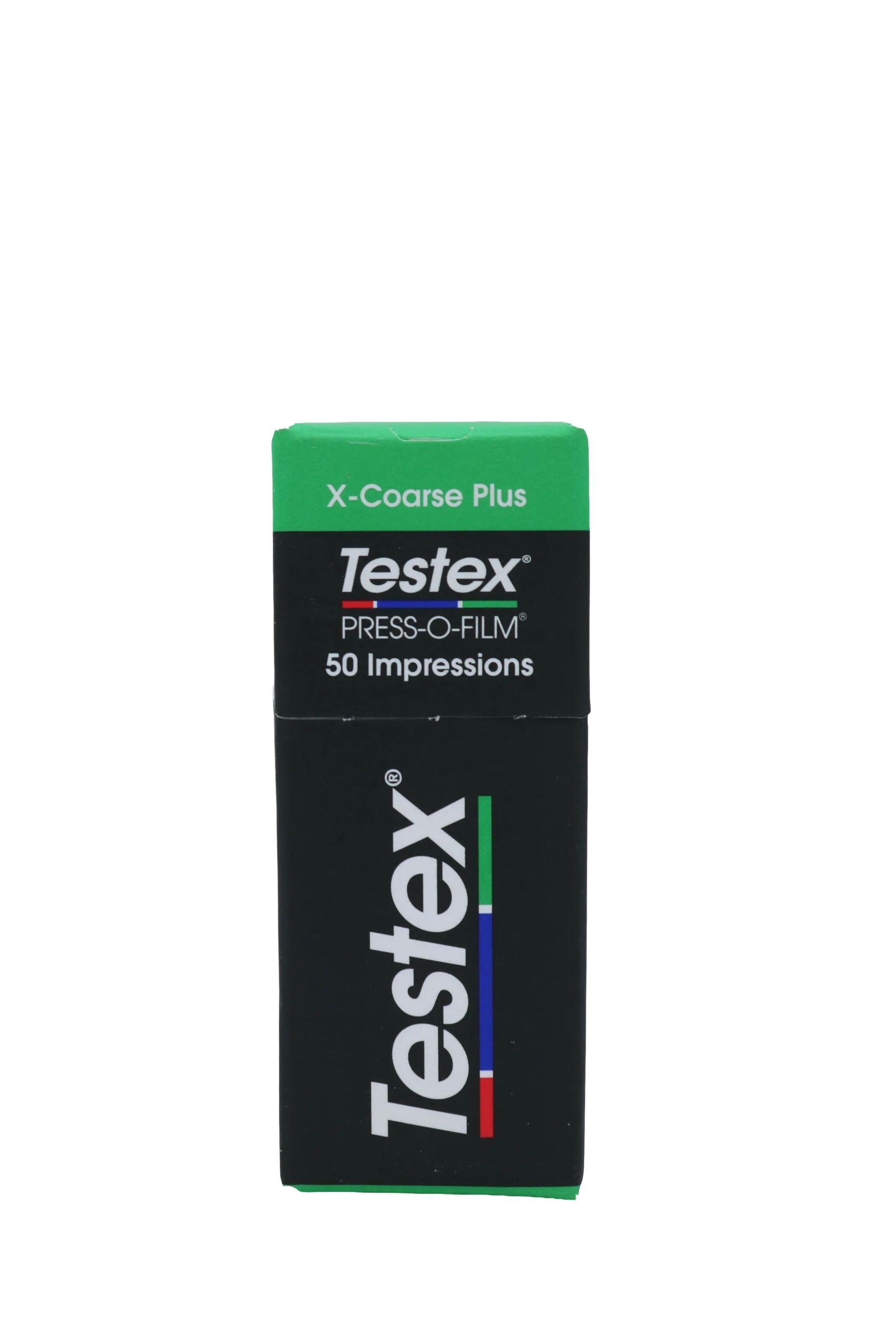

Testex X-Coarse Plus Replica Tape
$38.00
Press-O-Film® Replica Tape – X – Coarse Plus
1 carton containing 50 pieces (impressions) of Testex Tape
Coarse measures: 4.0 to 6.0 mils (100 to 150 µm)
Replica Tape consists of a compressible foam layer attached to a uniformly thick, incompressible polyester substrate. When the tape is pressed against a rough steel surface, the foam collapses and forms an impression of the surface. To measure the surface profile, use an spring or digital micrometer thickness gauge and subtract the thickness of the substrate.
Only logged in customers who have purchased this product may leave a review.
