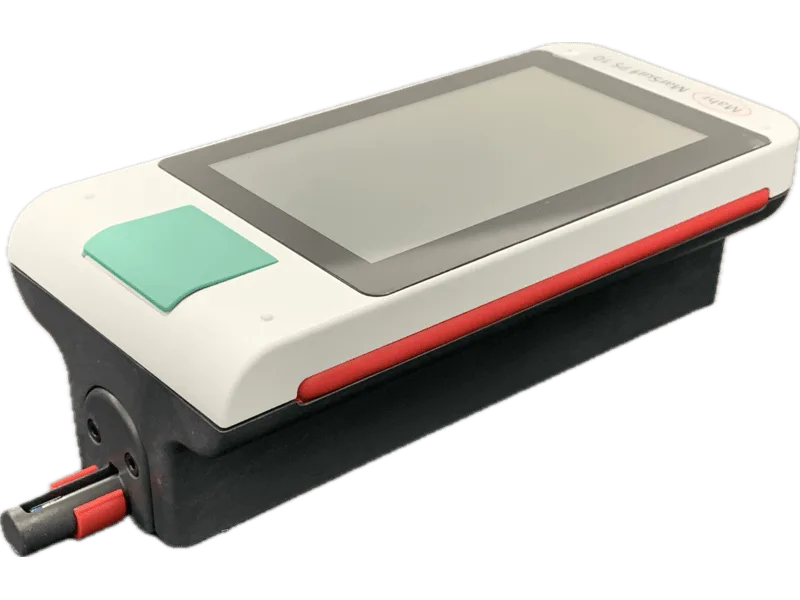

MarSurf PS 10 Side View
Click to enlarge
Home Surface Profile MarSurf PS 10
chlor wash bucket
Chlor*Wash Multipurpose Cleaner & Salt Remover $109.75
Back to products
Sling Psychrometer Side Profile
Sling Psychrometer $110.00

MarSurf PS 10

$2,960.00

Purchase this product now and earn 296 points!
Add to wishlist
SKU: 210965 Category: Surface Profile
Share:
  • Description
  • Additional information
  • Reviews (0)
Description

Simple, smart and mobile

  • Easy and intuitive operation: as easy as operating a smartphone
  • Large, illuminated 4.3“-TFT touch display
  • Adjustable display
  • In the palm of your hand. Small size and light weight (approx. 500 g)
  • Instrument flexibility: removable drive unit
  • 31 parameters: offer the same range of functions as a laboratory instrument.
MarSurf PS 10 Top Down View
MarSurf PS 10 Report View

Powerful all-rounder

  • Data backup as TXT, X3P, CSV and PDF file
  • Creation of finished PDF protocols directly in the measuring device
  • Customized comments for the PDF protocol are entered directly on the MarSurf PS 10
  • Mains-independent operation: Over 1200 measurements without having to recharge the instrument
  • Work without errors: through integrated, removable roughness standard
  • Quick access to your desired functions thanks to favorites stored in the display

Reliable measurement

  • Working without errors: due to integrated, removable roughness standard
  • Automatic cutoff selection: ensures correct measurement results even for the non-specialist
Additional information
Weight 2.5 lbs
Dimensions

160mm x 77 mm x 50 mm

Positioning Speed

0.5; 1.0

Measuring Principle

Stylus Method

Probe

Inductive Skidded Probe

Parameters

Ra , Rq , Rz (Ry (JIS) is equivalent to Rz) , Rz (JIS) , Rmax , Rp , RpA (ASME) , Rpm (ASME) , Rpk , Rk , Rvk , Mr1 , Mr2 , A1 , A2 , Vo , Rt , RPc , Rmr (tp (JIS, ASME) is equivalent to Rmr) , RSm , RSk , RS , CR , CF , CL , R , Ar , Rx , R3z

Measuring range mm

0.350

Profile Resolution

8 nm

Filter according to ISO/JIS

Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)

Cutoff Ic according to ISO/JIS

0,25 mm , 0,8 mm , 2,5 mm , automatic filter detection

Short stroke under ISO/JIS

Selectable

Traversing length Lt according ISO/JIS

1.5 mm , 4.8 mm , 15 mm , N x Lc , variable , automatic

Traversing length according ISO 12085 (MOTIF)

1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm

Evaluation lenth In according to ISO/JIS

1.25 mm, 4.0 mm, 12.5 mm

Number n of sampling length according to ISO/JIS

Selectable: 1 to 16

Stylus

2 µm

Measuring force (N)

0,00075

Calibration function

Dynamic; Ra, Rz, Rsm

Storage capacity

Min. 3900 profiles, min. 500,000 results, min. 1500 PDF records, expandable to 32 GB with Micro SD card

Languages

German , English , French , Italian , Spanish , Portugese , Dutch , Swedish , Russian , Polish , Czech , Japanese , Chinese , Korean , Hungarian , Turkish , Romanian

Other

Lock/password protected, date/time

Data interface

USB , MarConnect (RS-232) , Micro SD slot for SD / SDHC cards up to 32 GB

System of protection

IP 40

Rechargeable batteries

Lithium-ion battery, min. 1200 measurements

Wide range power supply

100 to 264 V
