Click to enlarge
HomeSurface Profile PosiTector SPG Surface Profile Gauge
Previous product
Comparator Kit
Keane-Tator Surface Profile Comparator $35.00 – $360.00
Back to products
Next product
Dickson TP425
Dickson TP425 Temperature and Humidity Data Logger Digital $374.00
Defelsko

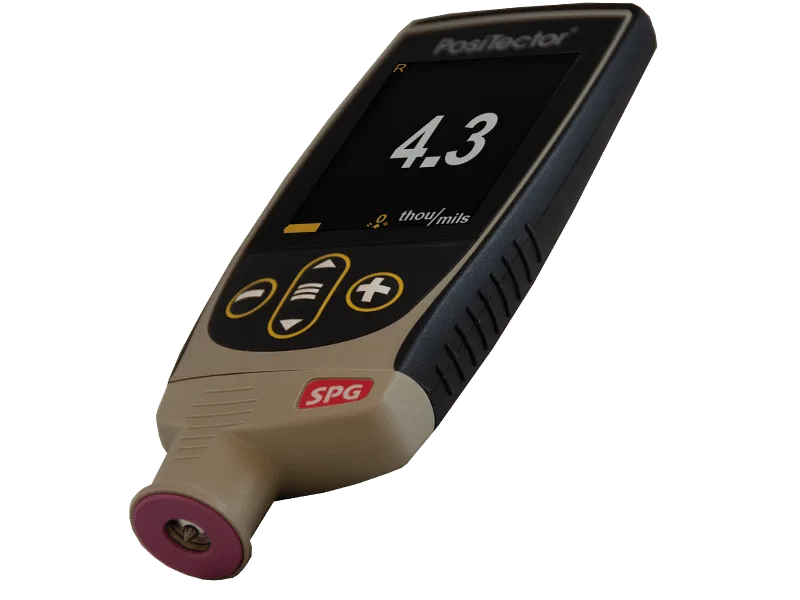

PosiTector SPG Surface Profile Gauge

$365.00 – $1,375.00

The PosiTector SPG Surface Profile Gauge measures and records peak to valley surface profile heights.

Clear
Add to wishlist
SKU: SPG Category: Surface Profile
Share
Facebook Twitter linkedin
  • Description
  • Additional information
Description

PosiTector SPG Surface Profile Gauge

The PosiTector SPG Surface Profile Gauge measures and records peak to valley surface profile heights. The gauge conforms to ASTM D4417, Method B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others. Made in the USA.
The SPG is simple and features a fast measurement rate of over 50 readings per minute, a large, easy-to-read graphics LCD, an enhanced, one-handed menu navigation, and a RESET feature instantly restores factory settings.
The SPG is durable and resistant to solvent, acid, oil, water and dust and is weatherproof. The 60° angle tungsten carbide tip features long life and continuous accuracy and is field replaceable. Each gauge is supplied with a shock-absorbing, protective rubber holster with belt clip and wrist strap. The SPG carries a two-year warranty on the body and probe.
The SPG is accurate and includes a built-in temperature compensation to ensure measurement accuracy. A Certificate of Calibration showing traceability to NIST included, as is a Glass Zero Plate and metal shim.
The SPG is universal as it accepts all PosiTector SPG (surface profile), DPM (environmental) and 6000 (coating thickness) probes. A 30° angle interchangeable probe tip available for special applications. The gauge features Selectable display languages, Hi Contrast backlit display for bright or dark environments, Flip display enables right-side-up viewing, and uses alkaline or rechargeable batteries (built-in charger).
The SPG is powerful and continually displays/updates average, standard deviation, min/max profile and number of readings. The HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits. Every stored measurement is date and time stamped.
Other features include a USB port for fast, simple connection to a PC and to supply continuous power (USB cable included) and multiple measurement download/transfer options: USB mass storage; PosiTector.net – a free web-based application offering secure storage of thickness readings; PosiSoft Software Compatible – the familiar legacy software you have used for years (available as a free download). Software updates via the web keep your gauge current.

Additional information
Weight N/A
Brand

Defelsko

You may also like…

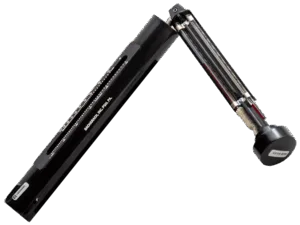

Bacharach Sling Psychrometer
