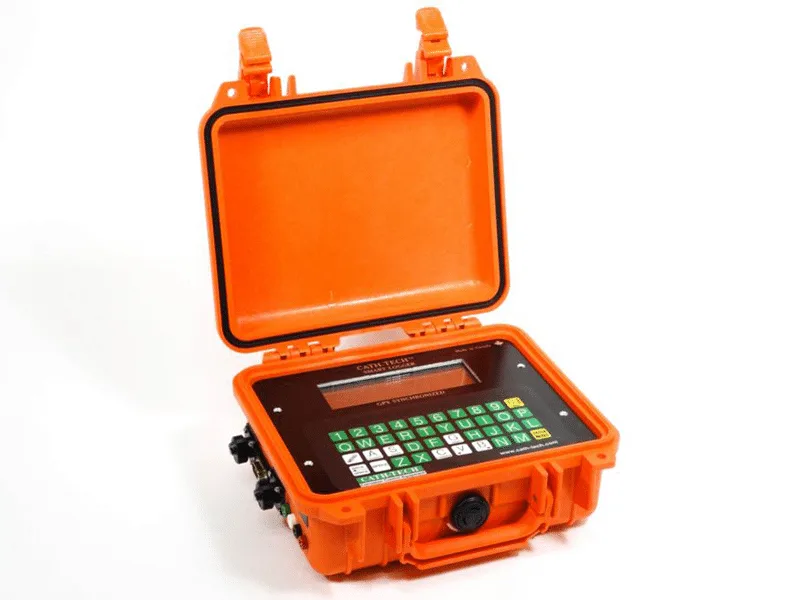

Cath-Tech Smart Logger II Dual Input w/ GPS
$3,600.00
- Description
- Additional information
- Reviews (0)
Description
Cath-Tech Smart Logger II Dual Input w/ GPS
Features
•Dual input: pipe to soil and shunt
•Portable and rugged
•GPS synchronization with other survey equipment
•Programmable waveform capture
•Every reading is time stamped
•ASCII comma delimited text file
No special software required
•Comprehensive 1 year warranty
Ideal for
•Correction of CIPS data for stray currents
•Correction of CIPS data for tellurics
•Monitor pipe to soil potentials
Technical Specification
•Range – Channel 1: +/- 5 V DC or +/- 25 V DC
•Range – Channel 2: +/- 50 mV
•A/D Converter: 14 bit
•AC Rejection: 100 dB
•Memory Capacity: 1 Mb, expandable to 2Mb
•Input Impedance: 10 M ohm or 250 M ohm
•Case: Plastic with o-ring seal, IP67 rated
•Dimensions: 27cm x 25cm x 13cm (10.5” x 10” x 5”)
•Weight: 3.2 kg (7 lb)
•Battery: 7.2V 4.5 amp hour NiMH
•User interface: 240 x 64 graphic LCD with 40 key QWERTY membrane keypad
•Communications: RS-232
•GPS synchronized with external antenna
Option to log GPS co-ordinates with every reading
Included
•Smart Logger II
•Test leads
•GPS magnet mount antenna
•AC charger; 120/240 V AC, 50/60 Hz input
•RS-232 cable
•USB to RS-232 converter
•Owners manual
Additional information
| Weight | 15.0000 lbs |
|---|
