Description

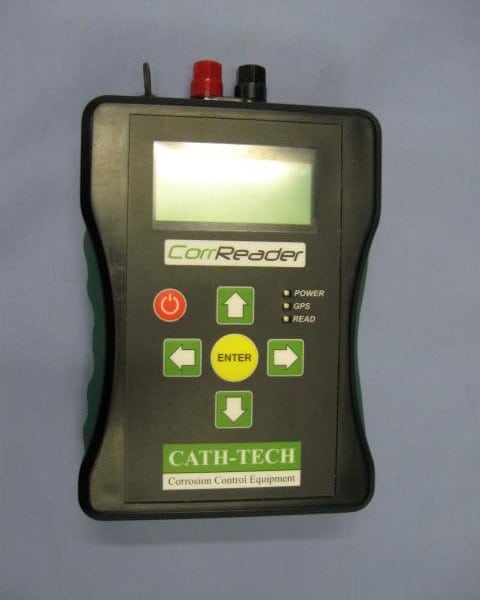

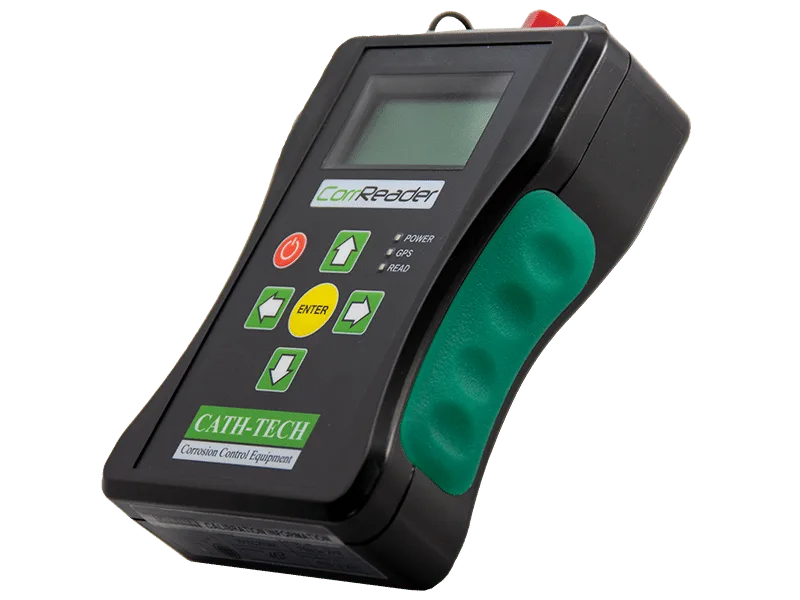

Cath-Tech CorrReader Test Point Recorder

Record critical CP data such as pipe-soil potentials, AC, date, time and GPS location for many points such as; Test stations, Meters, Risers, Valves, Bonds, Tanks, etc.

Technical Specification

· Single channel, DC and AC:

⇒  DC range of +/-10V at 0.1 mV precision with ≤1% accuracy

⇒  AC range of 100V at 1 mV precision with ≤1% accuracy

· Input impedance ≥ 10 MΩ

· AC rejection at 50 Hz to 60 Hz ≥ 80db, 50 V RMS superimposed

· Heavy duty impact resistant IP65 NEMA 4 case

· Operator programmable interruption cycle and ON/OFF durations.

· 16×4 LCD sunlight readable high contrast display

· Membrane switch tactile keypad with 6 buttons

· Long life 3.6V Li Ion battery recharged via USB

· Fully integrated internal GPS

· Micro SD card memory & data storage

· Waterproof USB 2.0 interface for data transfer

· Dimensions: 12.5cm x 5cm x 19cm, 5” x 2” x 7.5”

· Weight: 525 g, 1.2 lbs

Features

· Designed for simple easy use, even by non-corrosion technicians

· Internal GPS for synchronization and location information

· Optional entry of operator comments, location ID, etc

· Data saved to SD card with GPS coordinates and date/time stamped, no more hand written notes

· Programmable GPS time offset to operate in local time

· Data stored in an ASCII comma delimited file, no special software required!

· Ergonomic hand held design with no-slip grips

· Waterproof 5 way binding posts for test leads

· Comprehensive 2 year warranty

Additional information

Weight	3.0000 lbs
