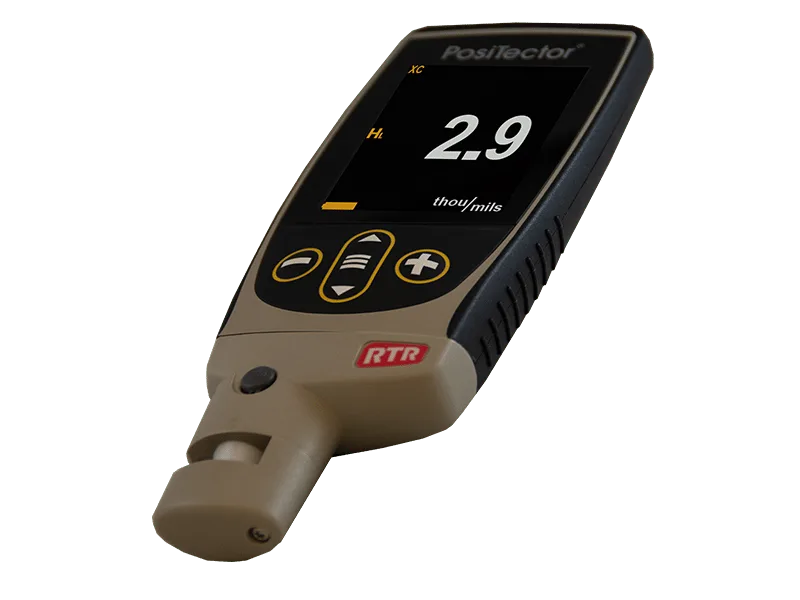

PosiTector RTR Replica Tape Reader
$425.00 – $1,200.00
This remarkable digital spring micrometer measures and records average peak to valley surface profile height with improved accuracy us Testex Press-O-Film Replica Tape. It also provides inspectors with a digital record of measurements that can be downloaded to your computer.
Description
PosiTector RTR Replica Tape Reader
This remarkable PosiTector RTR Replica Tape Reader is a digital spring micrometer that measures and records average peak to valley surface profile height with improved accuracy of Testex Press-O-Film Replica Tape. It also provides inspectors with a digital record of measurements that can be downloaded to your computer.
* Measures replica tape with improved accuracy over conventional analog spring micrometers.
* Automatically subtracts the 2 mil/50.8 micron incompressible polyester substrate thickness.
* Convenience/economy of using one tape instead of averaging the results from two tape grades.
* Retains a digital record of replica tape measurements for downloading and reporting
* Probe connects to current model Positector bodies to reduce cost
* Conforms to international standards including ASTM D4417, NACE RP0287, SSPC PA17, AS 3894.5 and ISO 8503-5.
Additional information
| Weight | N/A |
|---|---|
| Brand |
Defelsko |
You may also like…

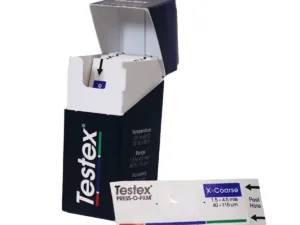

Testex Press-O-Film Replica Tape – Legacy Roll
Testex replica tape is used in conjunction with an analog or digital spring-loaded micrometer for acquiring surface profile measurements according to Method C in ASTM D4417. The replica tape is rubbed onto the abrasive blast cleaned surface forming a reverse replica of the peak-valley pattern in the steel. The replica is quantified using a spring-loaded micrometer to determine the maximum peak-to-valley depth. Each roll of tape contains 50 pieces.
Coarse 0.8 to 2.5 / 20 to 64
X-Coarse 1.5 to 4.5 / 38 to 115
X-Coarse Plus 4.6 to 5.0 / 116 to 127
If you are looking for the new Testex cartons, click here.
Related products
NACE Surface Finish Weld Replica
Based on NACE Standard RP0178, this 5.5" x11" visual comparator illustrates six degrees of surface finishing of lap welds and six degrees of surface finishing of butt welds. Two of the four corners on the comparator replicate a 1/8" and 1/4" radius for edge/corner grinding comparisons. Made in the USA.
