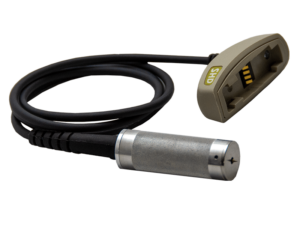

SHDD Probe
PosiTector SHD Shore Hardness Durometer Probe $495.00
Defelsko

PosiTector SHD Shore Hardness Durometer

$495.00 – $1,175.00

The PosiTector SHD Shore Hardnesss Durometer is a handheld electronic instrument that measures the indentation hardness of non-metallic materials. Two durometer models are available for different hardness ranges – Shore A and Shore D.

Clear
Add to wishlist
SKU: N/A Category: Hardness Testing
Share
Facebook Twitter linkedin
  • Description
  • Additional information
Description

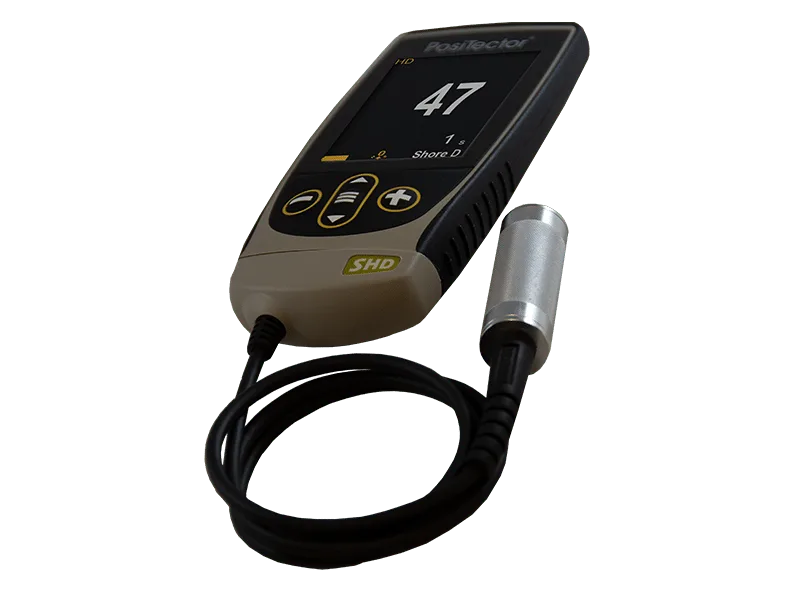

Positector SHD Shore Hardness Durometer

The PosiTector SHD Shore Hardness Durometer is a handheld electronic instrument that measures the indentation hardness of non-metallic materials. Two durometer models are available for different hardness ranges – Shore A and Shore D.

PosiTector SHD probes are only compatible with PosiTector Advanced (serial numbers 730,000+) and PosiTector Standard gage bodies with a color display (serial numbers 780,321+). A simple gage update may be required before using.

Simple

  • Easy-to-read digital display
  • User-adjustable measurement time with onscreen countdown to conform to national and international standards
  • Flashing display – ideal for noisy environments
  • Enhanced one-handed menu navigation
  • RESET feature instantly restores factory settings

  Durable

  • Solvent, acid, oil, water and dust resistant – weatherproof
  • Shock-absorbing, protective rubber holster with belt clip
  • Hardened steel indentor
  • Two year warranty on body AND probe

  Accurate

  • Certificate of Calibration showing traceability to NIST included (Long Form)
  • Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
  • Hi-RES mode increases displayed resolution to 0.1
  • Includes test block to verify operation
  • Conforms to national and international standards including ISO and ASTM

  Versatile

  • PosiTector body accepts all PosiTector SHD, 6000, 200,SPG, RTR, DPM and UTG probes easily converting from a shore hardness durometer to a coating thickness gage, surface profile gage, dew point meter or wall thickness gage.
  • High contrast, reversible color LCD with backlit display
  • Selectable display languages
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)

  Powerful

  • Continually displays/updates average, standard deviation, min/max hardness and number of readings while measuring
  • Screen Capture – save screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when hardness measurements exceed user-specified limits
  • USB port for fast, simple connection to a PC and to supply continuous power
  • Software Solutions for viewing, analyzing & reporting durometer data:
    • PosiSoft USB Drive – stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
    • PosiSoft Desktop – desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data. Available as a free download.
    • PosiSoft.net account – a free web-based application offering secure storage of thickness readings
    • PosiTector App – (Advanced models only) – Mobile app connects PosiTector Advanced instruments to your iOS or Android smart device.
  • Every stored shore hardness measurement is date and time stamped
  • Software updates via the internet keep your gage current



Additional information
Weight N/A
Brand

Defelsko

Readout Type

Digital

Test Method

ASTM 2240, ISO 7267, ISO 7619, ISO 868

You may also like…

DPMIR Angled
Close

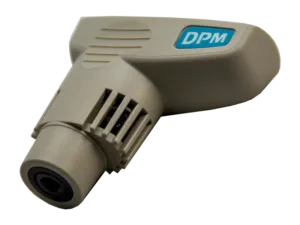

PosiTector DPMIR – DPMIR Probe Only
