Tinker & Rasor APW

$4,195.00

Verify a pinhole-free coating using the Tinker-Rasor high voltage holiday detector.

In stock

Add to wishlist
SKU: 213295 Category: Holiday/Pinhole Detection
Share
Facebook Twitter linkedin
  • Description
  • Additional information
Description

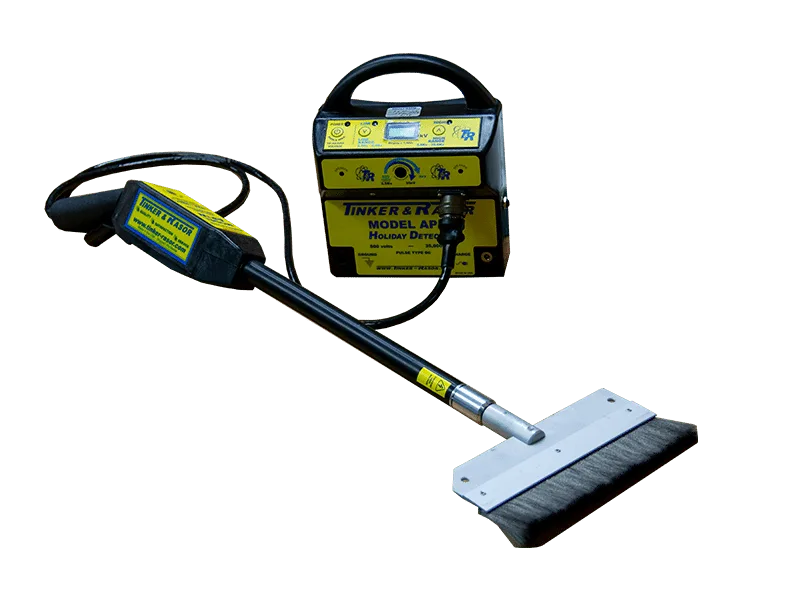

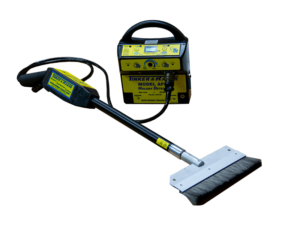

Tinker & Rasor APW High Voltage Holiday Detector

The Tinker & Rasor APW high voltage holiday detector will allow you to inspect nearly any coating you come across for holidays and pinholes.  With the majority of the instrument capable of being worn on a belt, it helps reduce arm fatigue when being used on floors, tanks, walls, and other non-pipe structures.  The APW also features highly visible LED lights and an audible alarm to alert you of any pinholes that you encounter.  It features a mil-spec ergonomic design to give it the ideal combination of comfort and durability.

The APW now also includes a safety switch right in the handle.  If the switch is not held in the holiday detector will not output a charge.  This increases the safety of the operator and everybody on the job site!

Output Voltage Range: 800 volts to 35,000 volts
Output Voltage Positions: 100 volt increments
Accuracy: +/- 5%
Input Voltage: 6v Battery, 110 volt AC Charger, 220 volt charger available
Instrument Dimensions: 6.75” x 8.5” x 3.5”, 8lbs

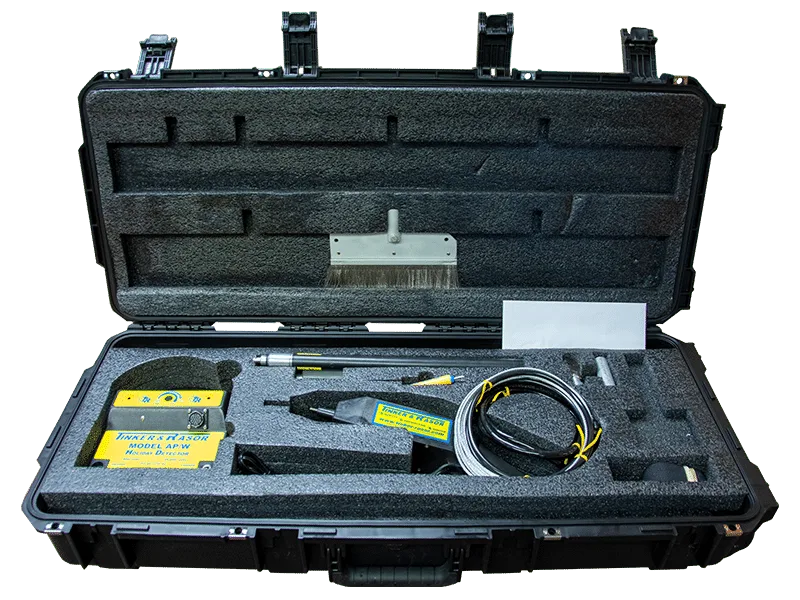

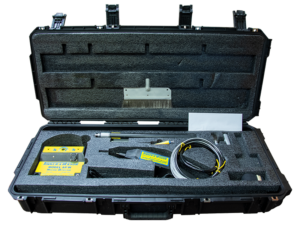

Carrying Case Dimensions: 41” x 18” x 8” , 35 lbs



Included with every APW purchase is:

  • Instrument and Power Pak
  • 5′ High Voltage Power Cable
  • 20′ Ground Cable
  • Wand and Extension Handles
  • Rechargeable Battery and Charger
  • Your Choice of Electrode*
  • Belt (Hip or Shoulder)
  • Mil-Spec Carrying Case with Wheels
  • Adapter to use “Spy” Spring Electrodes with Tinker and Rasor Wand Handle
  • Voltage Adjusting Screw Driver
  • Instruction Manual
*Choice of Electrodes
Please put which one of the following electrodes you would like with your detector in the notes when placing your order.
Full Circle Spring Electrode for any one pipe diameter between 2″ and 36″
Half Circle Spring Electrode for any one pipe diameter between 0.75″ and 8″
Silicone-Rubber, or Wire-Brush Electrode with any one width between 2″ and 8″
Additional information
Weight 38.0000 lbs

Related products

DE Stearns 14/20 High Voltage Holiday Detector
DE Stearns 14/20 High Voltage Holiday Detector
Close

DE Stearns 14/20 High Voltage Holiday Detector

$4,195.00
Verify a pinhole-free coating using the DE Stearns high voltage holiday detector. Please call for pricing and availability on Spring and Flat Brush Electrodes.
Add to wishlist
View products
Quick view
PosiTest HHD with flat brush
PosiTest HHD
Close

PosiTest HHD High Voltage Holiday Detector

$3,595.00
The PosiTest HHD is a pulse DC high voltage holiday detector featuring a measurement range of 500 to 35,000 volts.
Add to wishlist
Add to cart
Quick view
SPY
Close

Spy High Voltage Holiday Detectors

$4,377.00 – $4,620.00
SPY 780: Capable of reading 1,000 to 5,000 volts the SPY 780 is designed to be used with thin film coatings. SPY 785: Capable of reading 1,000 to 15,000 volts the SPY 785 is designed to be used for thicker coatings such as coal tars, extruded, and tape coatings. SPY 790: Capable of reading 5,000 to 35,000 volts the SPY 790 is designed to handle a very wide range of coating thicknesses and types.
Add to wishlist
Select options
Quick view
Sold out
PRM
Close

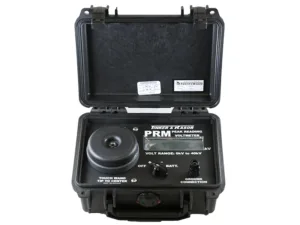

Tinker & Rasor PRM
