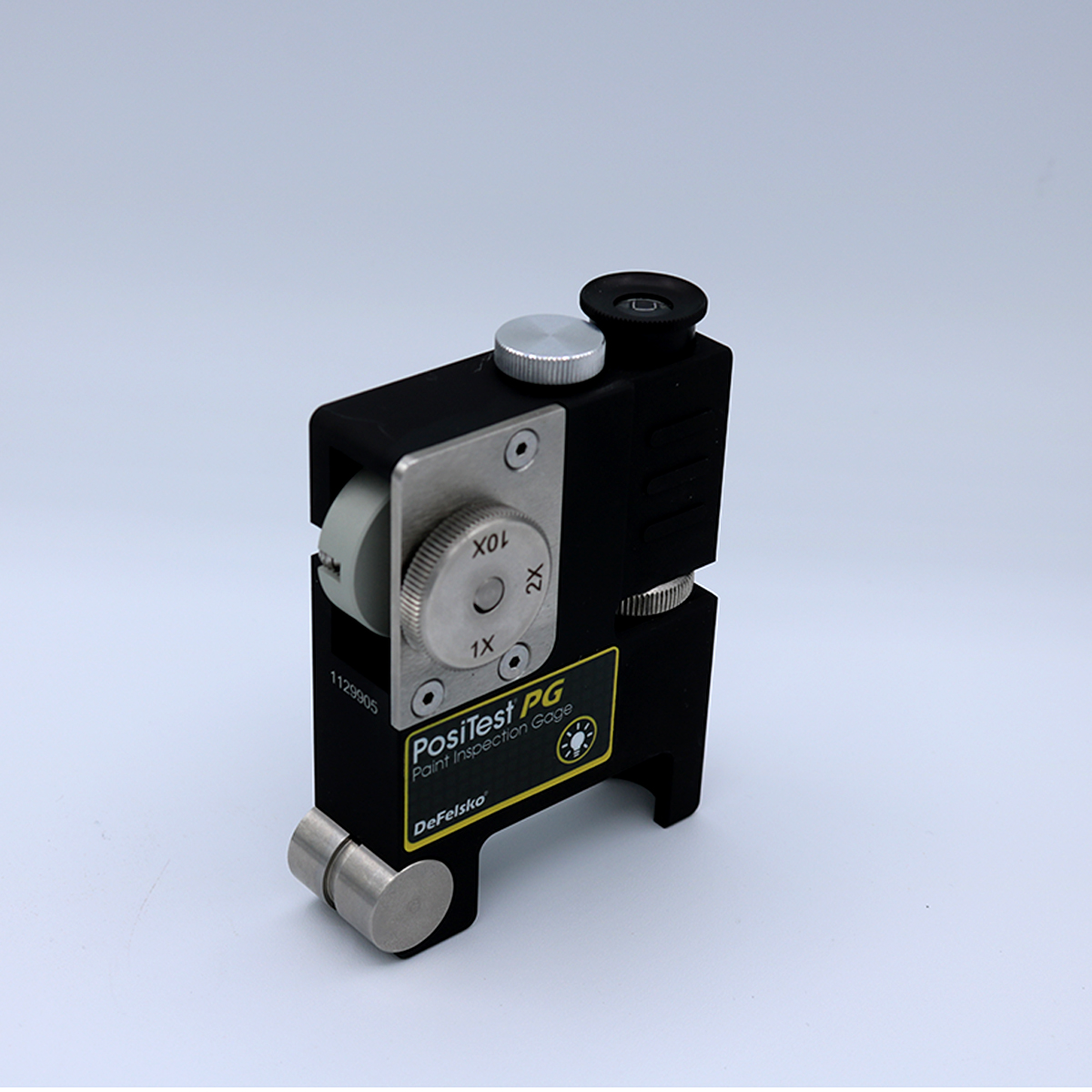

PosiTest PG Paint Inspection Gage

The PosiTest PG Paint Inspection Gage is a precision instrument designed to destructively measure the thickness of one or multiple layers of coating on virtually any substrate. Engineered with a rugged anodized aluminum housing and a rotating cutting tip holder capable of securing up to four tips, this gage ensures convenience and reliability in every application.

Equipped with a powerful 50x microscope featuring precision optics and a rotating measurement scale in both imperial and metric units, the PosiTest PG delivers accurate and repeatable results. The gage includes 1x, 2x, and 10x cutting tips (5x available) for measuring coatings up to 1,250 µm (50 mils), and its bright LED illumination, long battery life, and ergonomic design make it ideal for field and lab use alike.

Whether you’re inspecting paint thickness on steel, concrete, or composite surfaces, the PosiTest PG meets ISO 2808, ASTM D4138, and other global standards, and includes a Long-Form Certificate of Calibration traceable to NIST for audit-ready compliance.

Key Features:

• Measures coatings up to 1,250 µm (50 mils)

• Includes 3 cutting tips (1x, 2x, 10x); 5x tip available

• Powerful 50x microscope with rotating scale (Imperial & Metric)

• Integrated LED light with auto-off function

• Rugged anodized aluminum housing

• Includes Certificate of Calibration traceable to NIST

• Conforms to ISO, ASTM, JIS, and NF standards

• Two-year manufacturer warranty
