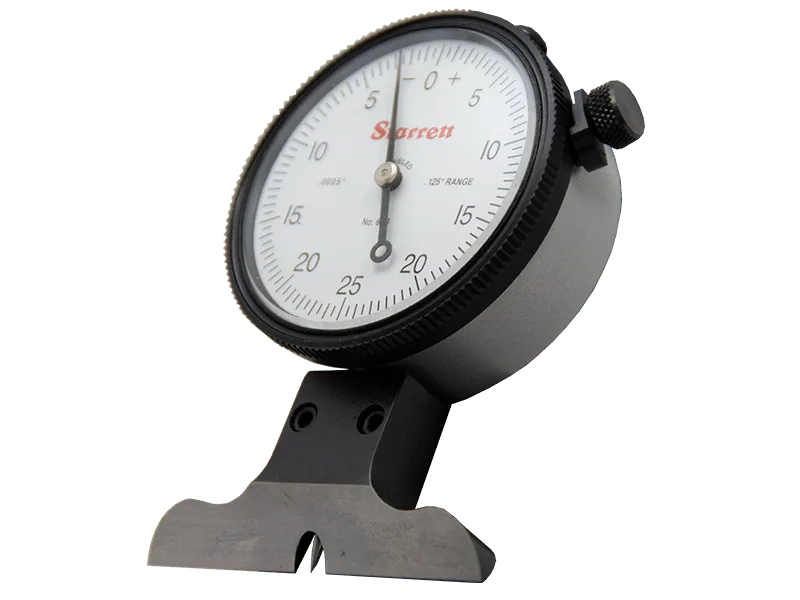

Starrett 643JZ
Click to enlarge
Home Surface Profile Dial Depth Pit Gauge
Testex Press-O-Film Replica Tape
Testex Press-O-Film Replica Tape $36.00 – $50.00
Back to products
Clemtex hypodermic needle pressure gauge
Hypodermic Needle Pressure Gauge $13.75 – $230.00

Dial Depth Pit Gauge

$467.50

This precision gauge measures the depth of pits up to 125 mils (0.5 mil increments). The 2.5″ x 3.75″ gauge is designed with an elongated knife edge stabilizer and a cut-out for positioning the pinpoint stylus directly over the pit for optimum measurements. Gauge comes complete with case, instructions and manufacturer’s Certificate of Accuracy.

Out of stock

Add to wishlist
SKU: 210930 Category: Surface Profile
Share:
  • Description
  • Additional information
Description

Dial Depth Pit Gauge

This Dial Depth Pit Gauge measures the depth of pits up to 125 mils (0.5 mil increments). The 2.5″ x 3.75″ gauge is designed with an elongated knife edge stabilizer and a cut-out for positioning the pinpoint stylus directly over the pit for optimum measurements. Gauge comes complete with case, instructions and manufacturer’s Certificate of Accuracy.

Additional information
Weight 1.1500 lbs
