Testex Digital Micrometer
$350.00
The Testex Digital Micrometer makes using Replica Tape easy with a bright color display, measures in microns & mils, stores 250 readings, and includes a USB Cable.
Description

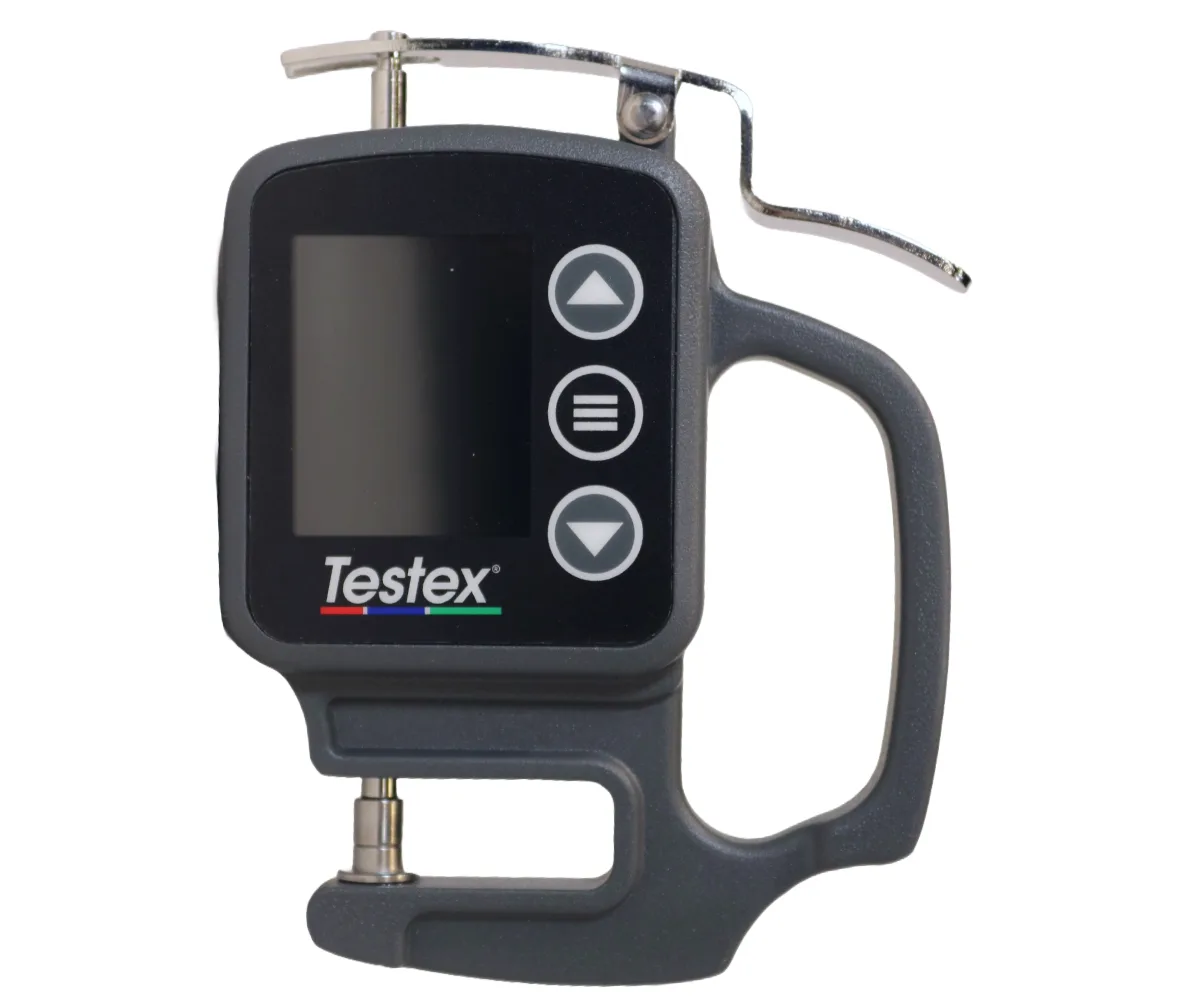

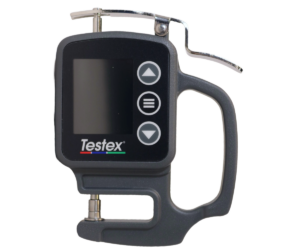

Testex Digital Micrometer Thickness Gage
The Testex Digital Micrometer is designed to make using Testex Replica Tape easier. The bright color display allows for easy viewing and quick readings.
User Friendly

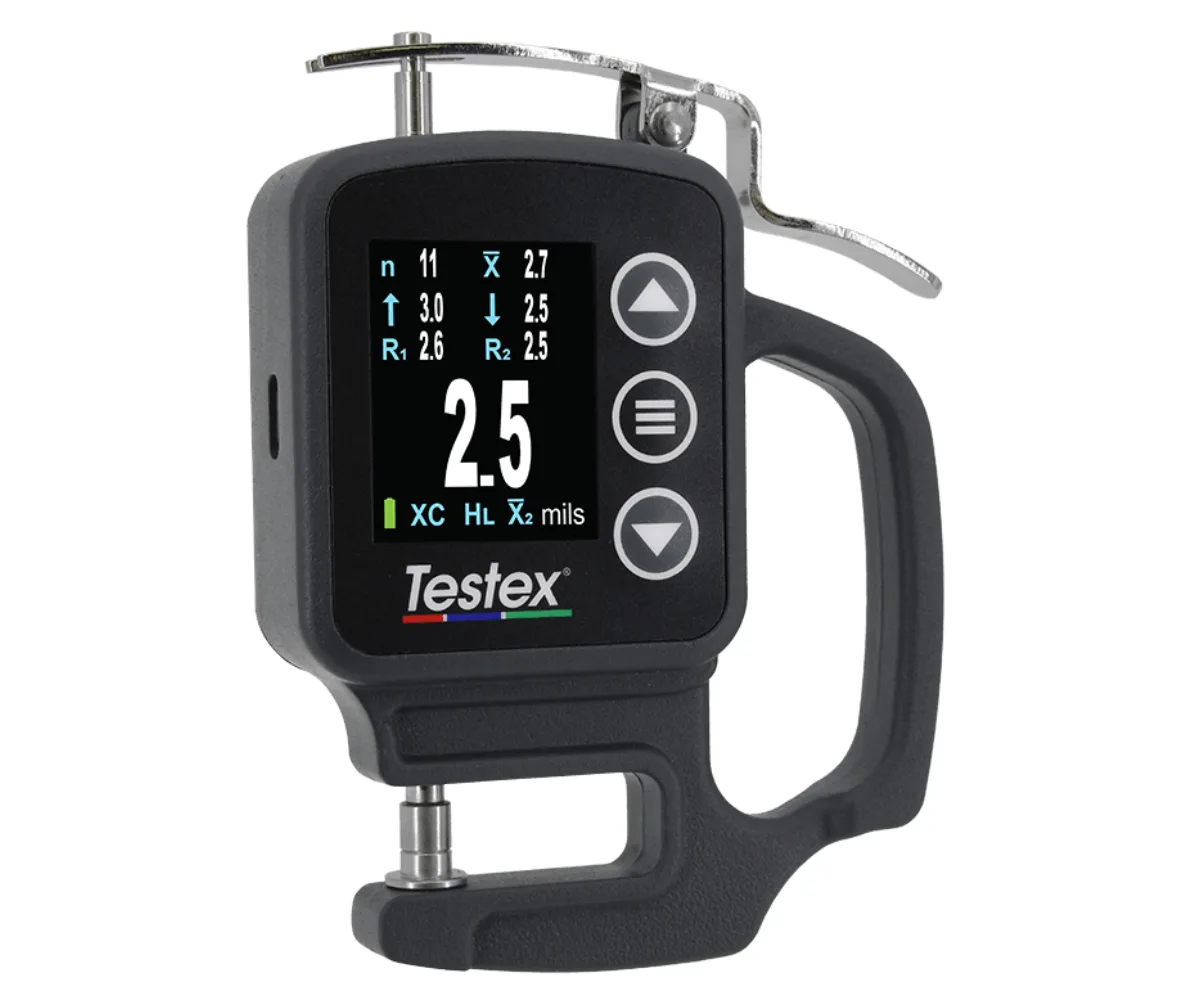

- The bright digital color display shows large numbers for easy readings.
- Measures in both Microns and Mils
- Stores up to 250 readings and shows on-screen statistics. You can view and download these measurements onto any computer using the included USB cable. No software required.
- The housing is made of durable metal
- Powered by 1 AAA battery
Made for Replica Tape
- Just select the correct replica tape grade, and the appropriate conversion factor will be applied automatically. Then, subtract the 50 µm (2 mils) backing thickness
- In 'Average mode,' the Micrometer guides the user to take two readings and then calculates their average, adhering to international standards.
- Each digital micrometer includes a traceable Certificate of Calibration
Download to your PC or Mac
- Fully compatible with the powerful PosiSoft Software for archiving and reporting measurement data
- USB Drive mode retrieves data like a flash drive in .csv format. No software installation or internet connection is needed.

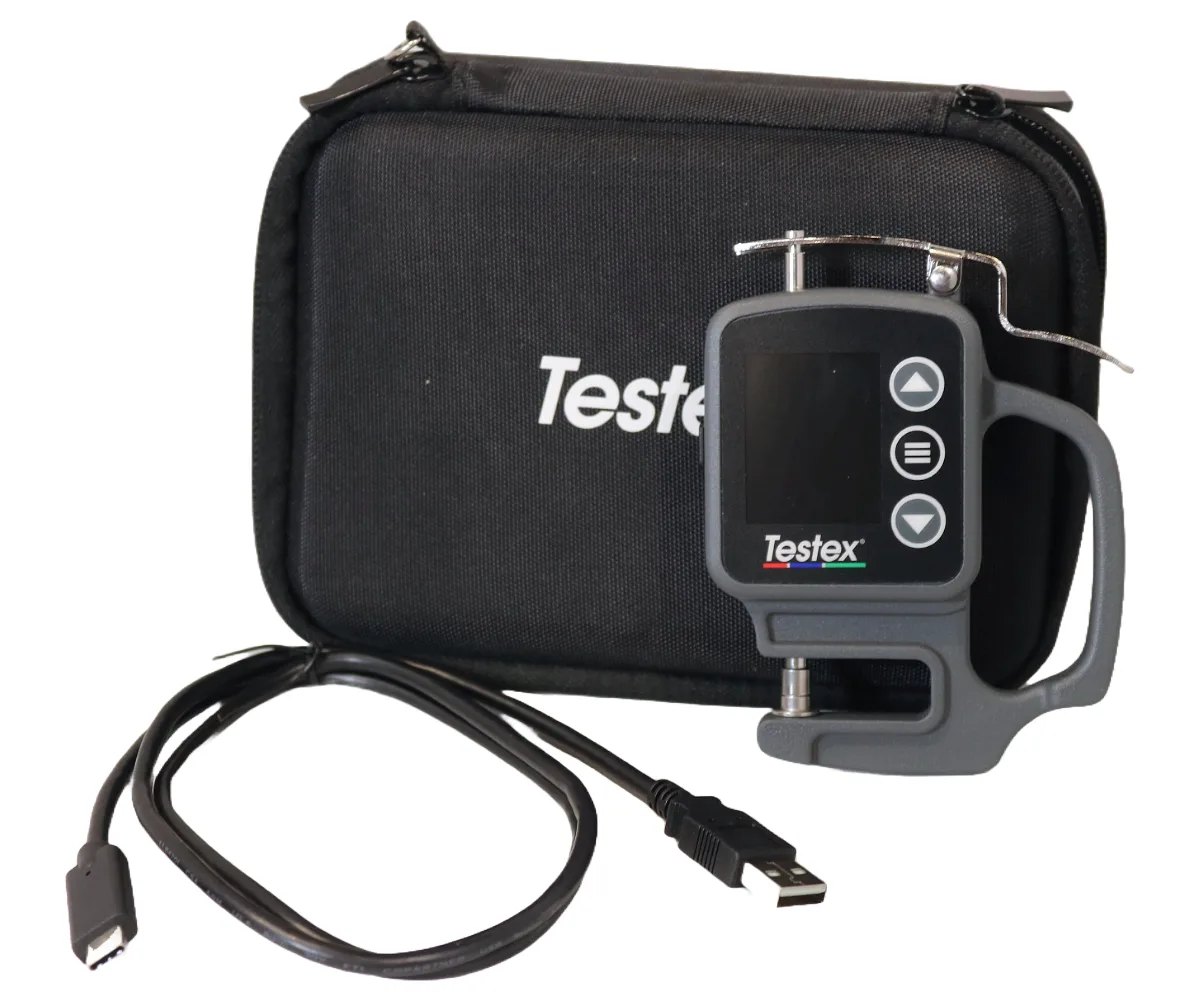

Includes:
- Digital Micrometer
- Instruction Manual
- USB Cable
- Certificate of Calibration
- (1) AAA Battery
- Custom Case
| Measuring Range | 0 - 40 mils | 0 - 1000 μm |
|---|---|---|
| Accuracy | 0 - 10 mils: ±0.2 mils
10 - 40 mils: ±(0.2 mils + 1%) |
0 - 250 μm: ±5 μm 250 - 1000 μm: ±(5 μm + 1%) |
| Resolution | 0.1 mils | 1 μm |
| Closing Force | 1.1 N | 1.1 N |
| Anvil Diameter | 0.25" | 6.35 mm |
Additional information
| Weight | 1 lbs |
|---|---|
| Brand |
Testex |
