paint adhesion test kit
Click to enlarge
Home Adhesion Paint Adhesion Test Kit
KTA Cross Cut Guide Adhesion Test Kit
KTA Cross Cut Guide Adhesion Test Kit $4.50 – $250.00
Back to products
Corporate Worker Safety and Health Program for Industrial Painting Projects
Corporate Worker Safety & Health Program for Industrial Painting Projects $3,000.00
Gardco

Paint Adhesion Test Kit

$92.00 – $199.00

The Gardco Paint Adhesion Test Kit contains all of the equipment you will need to perform cross-cut adhesion testing according to Method B in ASTM D3359, “Measuring Adhesion By Tape Test.”

paint adhesion test kit
$199.00

In stock

PA2052 Blade
$92.00

In stock

PA2053 Blade
$92.00

In stock

PA2054 Blade
$92.00

In stock

PA2056 Blade
$92.00

In stock

PA2057 Blade
$92.00

In stock

Purchase this product now and earn 8 points!
Add to wishlist
SKU: PA2000 Group Item Category: Adhesion
Share:
  • Description
  • Additional information
Description

This Paint Adhesion Test Kit contains all of the equipment you need to perform cross-cut adhesion testing according to Method B in ASTM D3359. One of the most frequently performed physical tests conducted on in-place coating systems is tape/knife adhesion. Performing this test in strict conformance to the ASTM standard is critical for obtaining accurate adhesion ratings. ASTM D3359, “Measuring Adhesion By Tape Test” describes two methods: Method A (X-cut) is used for coatings in excess of 5 mils; and method B (cross-cut) is used for coatings up to 5 mils thick. If your coating system is greater than 5 mils thick, then see https://ktagage.com/product/kta-x-cut-guide-kit-2/.

The Gardco Paint Adhesion Test Kit contains everything you need to perform cross-cut adhesion testing according to Method B in ASTM D3359. A precision machined multiple tip cutter blade contains 6 or 11 teeth for maintaining spacing between incisions. Cutter blades (sold separately) are secured in a metal handle. The kit comes complete with a blade holder, small brush for removing debris after cutting the coating film, a lighted magnifier, roll of adhesive tape, and a copy of the ASTM test method, all in a durable foam-fitted plastic carrying case. Conforms to ASTM D3359. Made in the USA.

Cutter blades Sold Separately

Cutter blades for insertion into the handle are available in 5 models:

  • Model PA2052: Fine blade with 6 teeth at 1mm spacing
  • Model PA2053: Fine blade with 11 teeth at 1mm spacing
  • Model PA2054: Medium blade with 11 teeth at 1.5mm spacing
  • Model PA2056: Coarse blade with 6 teeth at 2mm spacing

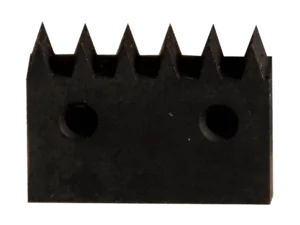

  • Model PA2057: Very coarse blade with 6 teeth at 3mm spacing
Additional information
Brand

Gardco

Test Method

ASTM D3359

You may also like…

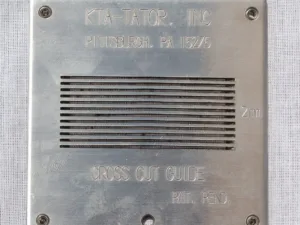

KTA Cross Cut Guide Adhesion Test Kit

KTA Cross Cut Guide Adhesion Test Kit

$4.50 – $250.00
The KTA Cross Cut Guide Kit contains all of the equipment you will need to perform cross-cut adhesion testing according to Method B in ASTM D3359, "Measuring Adhesion By Tape Test."
Add to wishlist
View products
Quick view

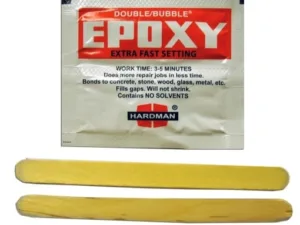

Hardman Double Bubble Fast Setting Epoxy
