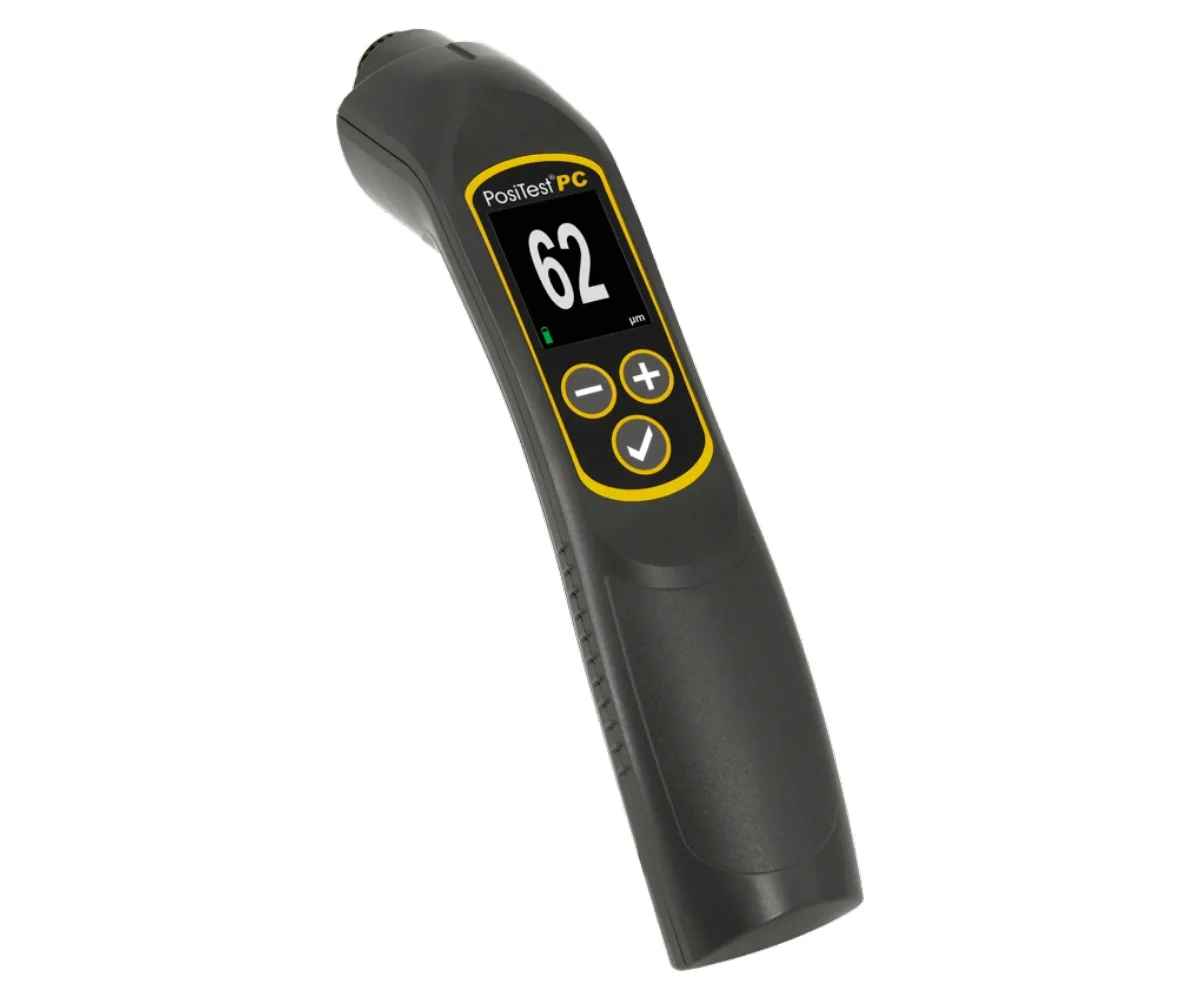

PosiTest® PC Powder Checker
$2,595.00
Non-contact Uncured Powder Thickness Gage
Using non-contact ultrasonic technology, the PosiTest PC measures uncured powder coatings to predict a cured thickness.
- Dedicated stand-alone unit is ready to measure right out of the box
- Up to 4x faster measurement speed*—ideal for moving lines and swinging parts
- No calibration adjustment required for most powders
- Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop Software
- Scan Mode continuously takes measurements—ideal for analyzing large areas
Conforms to ASTM D7378
Ships on December 15, 2025
In stock (can be backordered)
Description
PosiTest® PC Powder Checker

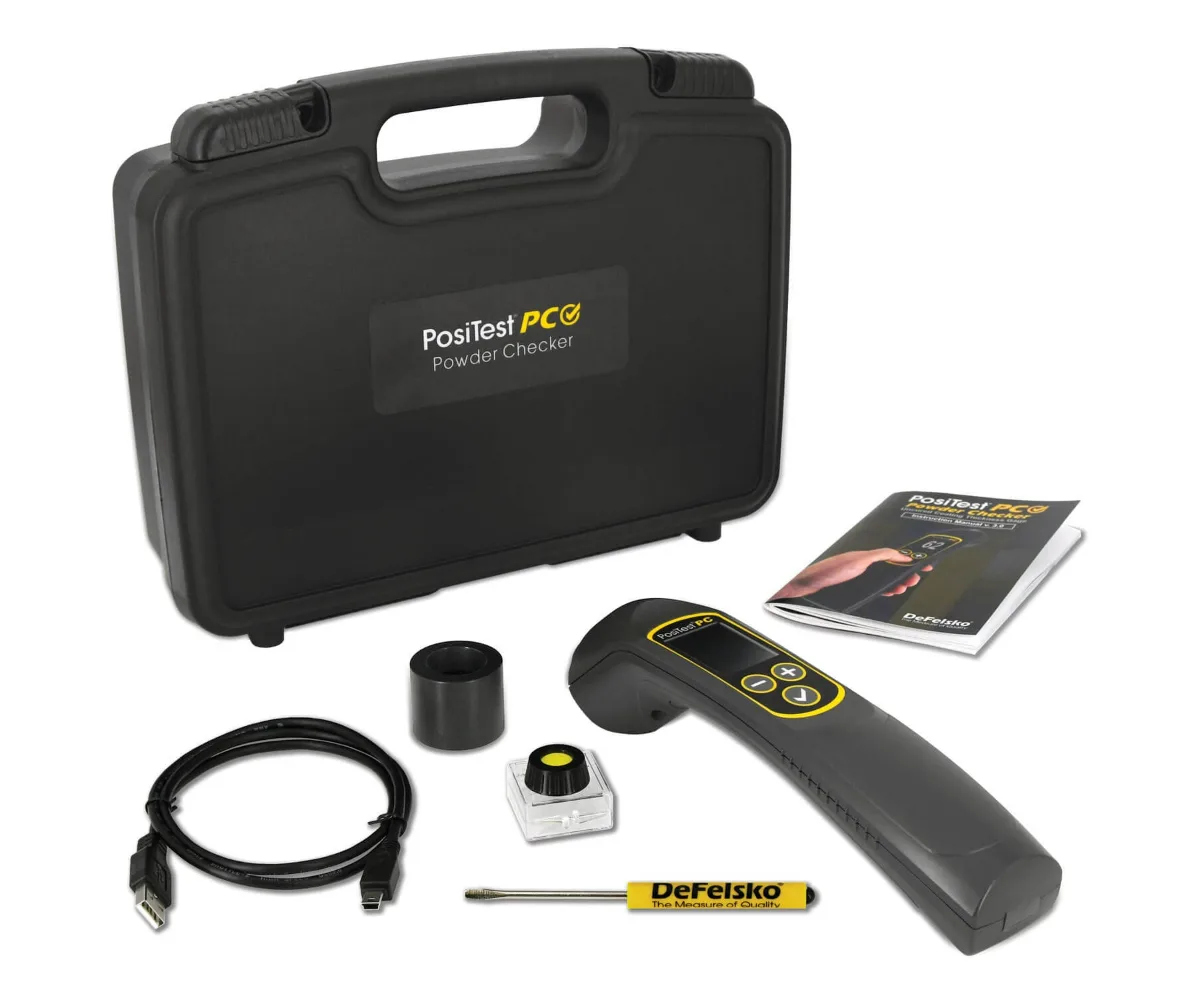

Includes:
- Probe Zero Fixture
- 4 AAA batteries
- Flat-head screwdriver
- Instructions
- Replacement probe screen
- Protective lens shield
- USB cable, hard shell case
- Two (2) year warranty
Simple
- Dedicated stand-alone unit is ready to measure right out of the box
- Up to 4x faster measurement speed* — ideal for moving lines and swinging parts
- Easy-to-read digital display with a simple, icon based menu
- Hand-held, battery operated
- Ergonomic and lightweight
- No calibration adjustment required for most powders
- Target Grid simultaneously displays distance to the part and alignment, making measurements easy
- RESET features instantly restores factory settings
Versatile
- No cable to risk disturbing the applied powder
- Mils/microns switchable
- High contrast color display
- Adjustable display brightness for optimal visibility in any environment
- Toggle sound On and Off
- Uses alkaline or rechargeable batteries
Durable
- Solvent, acid, oil, water and dust resistant—ideal for harsh powder coating environments
- Hard-shell carrying case included
- Replaceable screen protects the sensor
- Two year warranty
Powerful
- Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop software
- Scan Mode continuously takes measurements - ideal for analyzing large areas
- USB Keyboard Mode emulates keystrokes to easily stream readings to a PC or PLC
- USB port for fast, simple connection to a PC and to supply continuous power
- Software updates keep your instrument current
Accurate
- Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts
- Easy 1 and 2 point calibration adjustment options with Cal Reset to improve accuracy on unusual powders or substrates
- Conforms to ASTM D7378
Specifications
Range† 20 – 100 μm (0.8 – 4.0 mils)
Resolution 1 μm (0.1 mil)
Accuracy ±5 μm (± 0.2 mil)
Measurement Time 1 – 3 seconds
Measurement Distance to Powder 19 mm (0.75 inch)
Measurement Area 2 mm (0.8 inch)
Size 241 x 64 x 51 mm (9.5" x 2.5" x 2.0")
Weight 180 g (6.4 oz.) without batteries
† Based on TGIC-Free polyester powder
